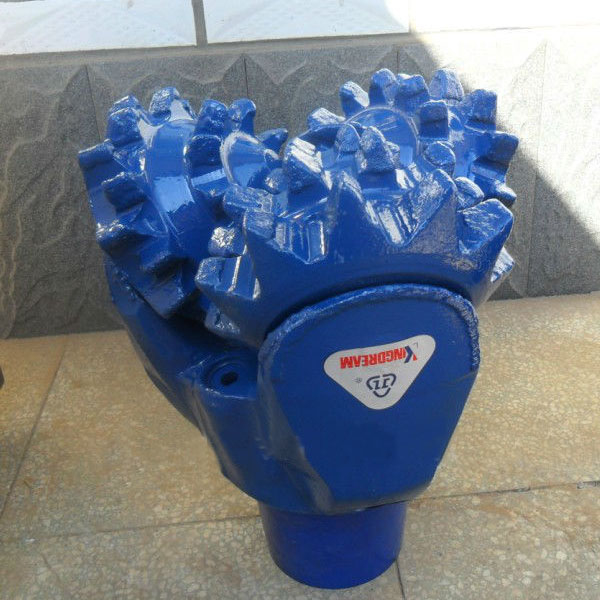

12 1/4" (311.2mm) Milled Tooth Tricone Bit IADC124

Size

12 1/4"(311.2mm)

IADC Code

124

Thread Connection

6 5/8 REG

Tooth Type

Milled Tooth

Material

Alloy Steel, Tungsten Carbide

Bearing Type

Sealed Roller Bearing

Nozzle:

Three Jet( Side) Nozzles

Weight

95-102kg

Applicable Formations

High-compressive strength, medium hard formations (like soft shale, clay, sandstone, soft limestone, etc.)

Available Size

5 7/8"(149.2mm)-17 1/2"(444.5mm)

Advantages

1.Short projection teeth with reduced crest length are used in this series of bit designs.
2.Durable hard facing is applied to reduce tooth wear.
3.Massive Stock makes the quick delivery& competitive prices.
4.Sizes& types that are not shown above could be customize according to different drilling requirements.

MOQ

1 Piece

Packing

Plywood Boxes/ As required

Payment

T/T, L/C

Delivery

Within 7 workdays

Types&
IADC Code

114
115

124
125

134
135

214
215

244
245

324
325

WOB

KN/mm

0.4~0.7

0.45~0.75

0.5~0.75

0.55~0.8

0.55~0.8

0.55~0.8

Lb/in

2280-4000

2570-4280

2680-4280

3140-4570

3140-4570

3140-4570

R.P.M

180~90

180~90

120~60

110~45

80~45

80~45
