| High Light: | TCI tricone bit,drill bit |
||
|---|---|---|---|

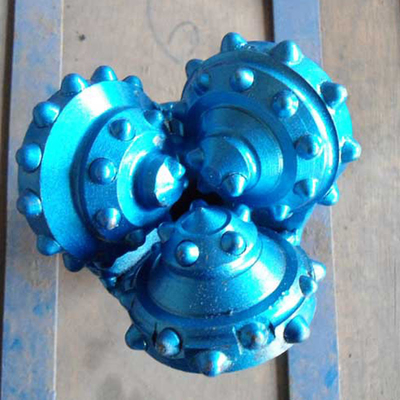

Kingdream API 17 1/2" IADC 417 TCI Tricone Bit/Rock Bit/Drilling Bit
Detailed Product Description:
Brawny TCI Tricone Bits
1)Bits size range :3-3/5"-26"
2)Best quality and low price
3)Longer drilling intervals
4) API &ISO9001
Product structure
| Metal-face sealed bearing TCI Bit | |
| Cutting Structure | The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit. |
| Gauge Structure | Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life. |
| Sealed Bearing Structure | 1.Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed. 2.The advanced metal seal package will improve the reliability and durability of bearing seal. |
| Main Type Available | Size: 6",6 1/2",7 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4",17 1/2", etc. IADC Code:4-- Series, 5-- Series, 6-- Series,etc. |
| Elastomer sealed bearing TCI Bit | |
| Cutting Structure | The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit. |
| Gauge Structure | Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life. |
| Sealed Bearing Structure | 1.Abrasion resistance and seizure resistance of the bearing are improved. 2.Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. |
| Main Type Available | Size: 5 7/8",6",6 1/2",7 1/2",7 7/8",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4",14 3/4",17 1/2", etc. IADC Code:4-- Series, 5-- Series, 6-- Series,etc. |
