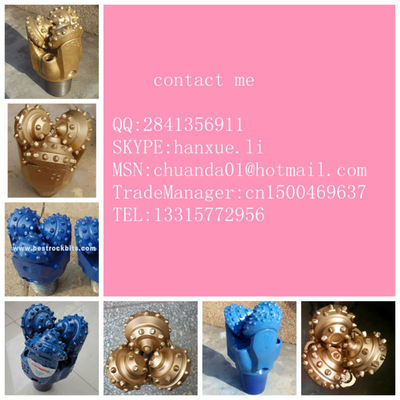

Blast hole tricone rock bits
1.Advantages of our products
(1) strong resistance to abrasion and impact resistance.
(2)Cutter’s quality performance is good.
(3)Long work life.
(4)Stocks adequate, time delivery.
(5)Rich experience in drill bit.
(6)High quality, competitive price
2.detailed description of this product
Available sizes: | 4 5/8"(118mm), 5 7/8"(149mm), 6"(152mm), 6 1/2"(165mm), 6 5/8"(168mm), 7 1/2"(190mm), 7 7/8"(200mm), 8 1/2"(215.9mm), 9 1/2"(241mm), 9 5/8"(245mm), 11 5/8"(295mm), 12 1/4"(311mm), 13 5/8"(346mm), 14 3/4"(374mm), 15 1/2"(394mm) 16"(406mm), 17 1/2"(445mm), 18"(457mm), 26"(660mm) |
Model NO. | 437,447,517,527,537,547,617,637,737 |
IADC CODE | 116,117,126,127,136,137,216,217,316,317,346,347 |
RPM(r/min) | 140~60 |
WOB(KN/mm) | 0.35~1.0 |
Thread Connection | 7 5/8 reg pin |
Bearing type | Sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA(rubber sealed journal bearing) Aircooled bearing type |
Applicable Formations | Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc |
Circulation system | Mud pump |
Material | Alloy steel, carbide |
Delivery terms | By sea or by air |
application | Petroleum and gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring and underground foundation work |
Export Markets | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
1>Cutting Structure
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
2>Gauge Structure
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3>Bearing Structure
High precision bearing with two thrust faces. Ball lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
4>Seal and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
5>Product Application
It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
Hejian Chuanda Petroleum Machinery Co.,Ltd. Supplies all kinds of PDC coring and non-coring bits, PDC sintering matrix bits and PDC anchoring bit. We also can design PDC bits according to customer requirements, such as different geology condition, special strata and so on.If you have interest of our products, pls feel free to contact us! We ensure you best quality with the most competitive price!
