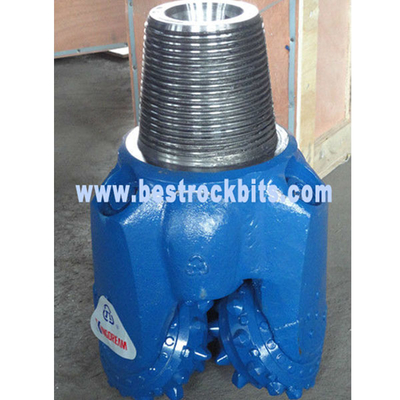

API Kingdream Journal Bearing Rock Drill Bit
As the professional supplier of rock bits in China,we can supply all kinds of rock bits,such as PDC bits,TCI bits,rock bits,tricone bits,single cone bits,multicone bits,steel tooth bits,insert tooth bits,roller bits,drill bits,drilling tools,etc.
Thesteel tooth tricone bitsseries:
Soft formationsteel tooth tricone bits:
The soft formations tooth bits are used to drill low compressive strength, soft formations. Long projection tooth lengths are used on high offset cones to provide the greatest penetrations rates possible. Wear resistance hard facing is used to control tooth wear. On the softest bit types this hard facing completely covers the bit teeth.
Medium hard formationssteel tooth tricone bits:
The medium hard formation tooth bits are used to drill high compressive strength, medium hard formations. Shoot projection teeth with reduced crest length are used in this series of bit designs. Durable hard facing is applied to reduce tooth wear.
Company | Hejian Fanglei Drill Equipment Co.,Ltd. |
Model | TCI BIT,STEEL TOOTH BIT |
IADC CODE | 116 117 126 127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 | |
available sizes | From 2 7/8 “to 26” larger sizes for hole opener bit ,reamer bit |
advantage | most favourable price and best qualtity |
bearing type: | sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type |
Formation or layer | soft ,medium soft ,hard,medium hard,very hard formation |
Button size (extra features) | Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection |
Material | Alloy steel ,carbide |
Market | Canada, USA,Middle east ,Africa,Europe |
1.Sizes range from 3 7/8" to 26" , normal sizes consist of 5 7/8", 6", 6 1/2", 7 1/2", 8 1/2", 9 1/2", 9 5/8", 9 7/8", 12 1/4",13 5/8", 14 3/4", 15 1/2", 16", 17 1/2",22", 26", etc. .
2.Covers almost all IADC codes .
3. Steel tooth bits is always rubber O-ring sealed bearing or roller non-sealed bearing.
4.Used for mining, hydrology, subterranean heat,piling, water well drilling and oil well drilling, construction foundation etc..
