Best Price of Good function hole opener Manufacturer for oil drilling
Product information
Good function hole opener Manufacturer
Tricone bit Cutting structure: very long widely spaced ,chisel-shaped inserts and considerable cone axis offset against center line of bit ensure very high penetration rate .To secure the bit from diameter loss, the gage protection inserts have got shorter length and greater angle of the top. Formations: long intervals of very soft poorly compacted shales ,sandstone, clays, salts and soft li mestones. Size and IADC available: 3 3/4" to 26" IA415,435,445,417,437,517,537,617
1. This series tricone bit use Sealed roller bearing structure. With rollers arranged in grooves recessed in the cone body, the size of the bearing journal is increased.
2. Thrust bearing surfaces are hardfaced and treated with friction reducing technology.
3. Ball locked cone, suitable for high rotary speed.
Company profile
Guangtong company was founded three decades, and always adhere to market-oriented, innovation as a starting point, to provide customers with a more comprehensive product for the drilling industry to reduce costs. Our staff put first-class management, first-class quality, excellent service as our eternal pursuit. The main products are drilling scraper, drill collars, fittings, assembly reamer.
Our company is specializes in drill bits,drill pipe,Mud pump and stabilizers for water well,oil field,construction,geothermal,directional boring and underground foundation work all over the world.Our purpose is to sellthe best quality products at the lowest possible price.We are a professional supplier of new and used (rebuilt)drill bits used for oil field,water well.Including tricone bits.PDC bits and drill pipe.Various of model and dimension available.Good condition and reasonable price.
Advantage
1.High-strength, high flexibility, high temperature, high wear resistance.
2. High-precision metal seal.
3. Locking roller ball, to adapt to high-speed.
4. The use of high strength high toughness carbide teeth,
5. Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock.
6. Cone bit to adapt to the soft, medium and hard of various strata.
7. Reasonable price and long working life.
Avaliable size
Size | Bit Type | |
inch | mm | |
6 | 152.4 | 517, 537,617, 637 |
6 1/2 | 165.1 | 517, 537 |
7 7/8 | 200.0 | 517,527,547,617,627,637 |
8 1/2 | 215.9 | 437,447,517,537,617,627,637 |
9 1/2 | 241.3 | 437,517,537,547,617 |
9 5/8 | 244.5 | 437,517, 537,547,617 |
9 7/8 | 250.8 | 437,517, 537,547,617 |
12 1/4 | 311.1 | 437,517, 537,547,617,627,637 |
17 1/2 | 444.5 | 517,537,617,627,637 |
24 | 609 | 417,517, 537,547,617,637 |
26 | 660 | 417,517, 537,547,617,637 |
ADC | 437 | 517 | 537 | 617 | 637 | 737 | |
WOB | KN/mm (bit dia.) | 0.5-0.75 | 0.5-0.85 | 0.5-0.85 | 0.55-0.85 | 0.55-0.85 | 0.55-0.85 |
Lb/in (bit dia.) | 2860-4280 | 2860-4860 | 2860-4860 | 3140-4860 | 3140-4860 | 3140-4860 | |
r.p.m | 70-45 | 70-45 | 70-45 | 70-45 | 60-40 | 60-40 | |

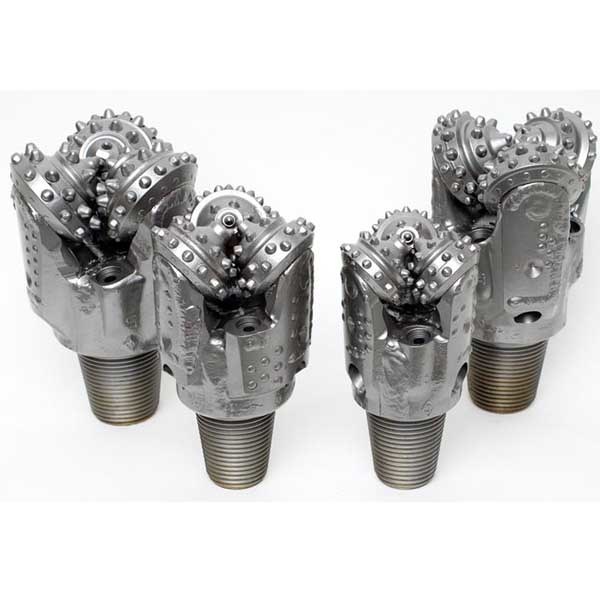

Picture show
Any inquiry is welcomed here.
1) How to send money to us ?
We can send you our bank account information after the contract is made .By T/T ,Western union ....
2) What is the MOQ ?
Small trial order is acceptable ,like 1pc,2 pcs....
3) Inspection is possbile ?
Yes, you are welcome to our company at any time or you can make inspection through Third inspection agent ,like "SGS" ,BV and so on .
4) How to transport the bits ?
By sea ,by air ,by DHL,by UPS and so on ....
Do you have any questions ? Please don't hesitate to ask me and you will get the satisfactory response once youcontact us .
