Large Image :  17 1/2"roller cone rotary tools rock drill bit used tci tricone bit

Product Details:

Place of Origin: Hebei ,China
Brand Name: Kingdream
Certification: API&ISO
Model Number: All models

Payment & Shipping Terms:

Price: 1500$
Packaging Details: wooden box or as your requirement
Delivery Time: 3---5 days after you payment
Payment Terms: T/T. L/C
Supply Ability: 100 pieces one month
Minimum Order Quantity: 1 piece
Contact Now
Detailed Product Description



17 1/2"roller cone rotary tools rock drill bit used tci tricone bit

Model

TCI BIT, STEEL TOOTH BIT



IADC CODE

116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347

417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535

available sizes

From 2 7/8 to 26”

larger sizes for hole opener bit ,reamer bit

advantage

most favorable price and best quality

bearing type

sealed bearing and non-sealed bearing

HJ(metal sealed journal bearing)

HA (rubber sealed journal bearing

aircooled bearing type

Formation or layer

soft ,medium soft ,hard, medium hard, very hard formation

Button size (extra features)

Button bit,saw teeth

1) Y-Conical teeth 2) X-chisel teeth

3)K- wide teeth

4)G- Gague protection

Material

alloy steel, tungsten carbide insert

Packing

Wooden caseor steel case

Payment terms

T/T

Delivery terms

By sea or by air

Delivery time

Within 7 days

Market

Canada, USA, Middle east ,Africa, Europe

Application

Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

Product

Size(inch)

IADC CODE



TCI Tricone Bit

3 7/8 ,5 1/2, 6 1/2,7 7/8,8 1/2,8 3/4,10 5/8,12 1/4

13 3/4, 17 1/2,,22, 24,26

417 427 437,517 527 537

617 637 737

Steel Tooth Tricone Bit

3 7/8 ,5 1/2, 6 1/2,7 7/8,8 1/2,8 3/4,10 5/8,12 1/4

13 3/4, 17 1/2,,22, 24,26

115 116 117 215 216 217 315 316 317 325 327

PDC BIT(3 blades,4 blades,5 blades,6 blades)

5 1/2, 6 1/2,7 7/8,8 1/2,8 3/4,10 5/8,12 1/4

13 3/4, 17 1/2,22, 24,26

M223,M322,M316,

M222,M416,M122



The Advantages of using a tri cone over other drill bits

  • There is a tri cone suitable for any rock formation
  • Tri cone bits are versatile and can handle changing formations
  • Tri cones Are reasonably priced with long life and good rate of drilling

Depending on your application we can provide you with new, re-run or premium oil field quality tricone bits. The difference between a premium oil field tricone bit and non-premium oil well quality tricone is that the roller cones have high end sealed bearings; extremely high quality tungsten carbide and offer diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.

When Ordering a bit the IADC bit classification system is a very useful tool and allows us to specify a bit that out preform your expectations.

Our TCI tricones bits Range in size from 3.875” (88.9mm) to 28” (711.2mm)
Our Mill tooth tri cone drill bits range in size from 5” (127mm to 32” (812.8mm)

IADC tricone rollercone classification system

  • 4 character code, first 3 characters are numbers, the last is a letter
  • 1st number is the series. 1 to 3 represent a milled tooth tri cones, 4 – 8 represent TCI tri cones. The higher the series number the harder more abrasive the rock formation is.
  • 2nd number is the relative degree of hardness within a series. The number ranges from 1 – 4, the higher the number the harder the formation
  • 3rd number represents bearing design and gauge protection.
  1. Open bearing
  2. Roller bearing air cooled
  3. Open bearing gauge protected
  4. Sealed roller bearing
  5. Sealed roller bearing gauge protected
  6. Sealed friction bearing
  7. Sealed friction bearing gauge protected
  • 4th character is a letter and describes optional features. There are 16 alphabetic character’s each representing the tricones most significant feature.

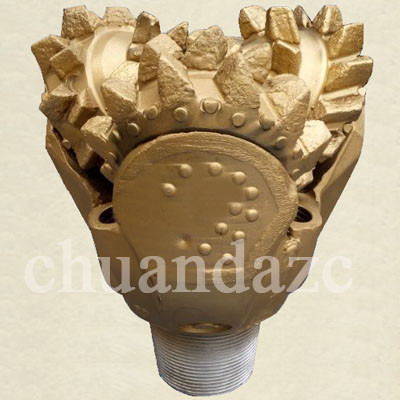

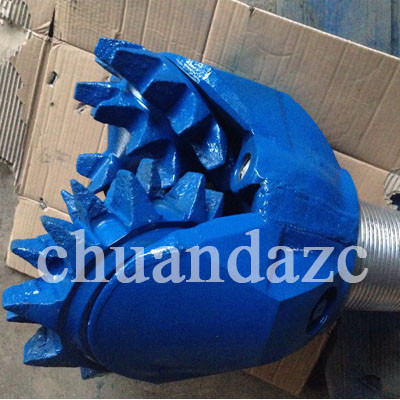

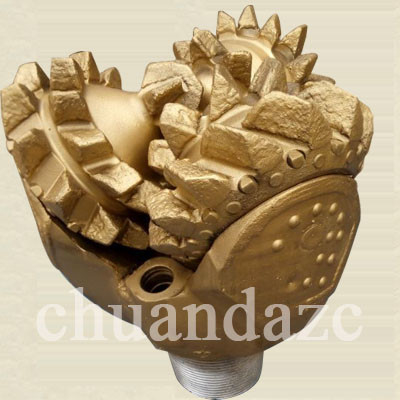

Mill tooth tricone drill bits

Mill tooth tricone drill bits have very high drilling rates in soft formations. Western Drilling Tools can hard face the milled teeth so that they sharpen themselves while drilling. Milled tooth tricone bits are designed for very soft to medium hardness formations.

Sealed Bearing mill tooth tri cone bit with or without gauge protection

These are the best preforming and longest lasting style of tri cone on the market. Guage protection increases the life of the drill bit.

Open Bearing mill tooth tri cone roller cone bit can come with or without gauge protection

These are less expensive then sealed bearing but they typically do not last as long.

TCI Tricone bit

TCI stands for Tungsten Carbide Insert. These tri cones are designed for soft to very hard formations depending on the style and quantity of the carbides on the drill bit.

Sealed Bearing TCI Tricone bit with or without gauge protection

These are the best preforming and longest lasting style of tri cone on the market. Sealed bearings will out perform open bearings. Gauge protection greatly increases the life of the drill bit.



TCI Tricone bit



TCI stands for Tungsten Carbide Insert. These tri cones are designed for soft to very hard formations depending on the style and quantity of the carbides on the drill bit.



Sealed Bearing TCI Tricone bit with or without gauge protection



These are the best preforming and longest lasting style of tri cone on the market. Sealed bearings will out perform open bearings. Gauge protection greatly increases the life of the drill bit.



Open Bearing TCI Tricone bit with or without gauge protection



Open bearing tricones can be guage protected or not. These tri cone bits have exceptional value, good performance and low cost. Gauge protection greatly increase the life of the drill bit.
