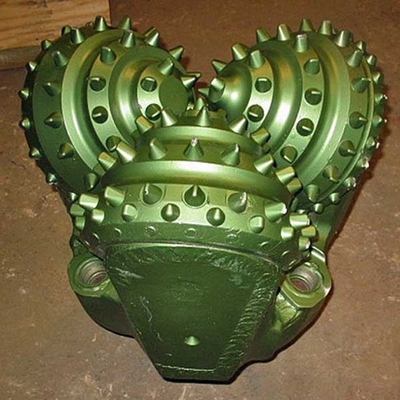

API 3"-26" tricone bit& drill bit & kingdream tricone bit for oil field
1.Advantages of our tricone bits
(1) strong resistance to abrasion and impact resistance.
(2)Cutter’s quality performance is good.
(3)Long work life.
(4)Stocks adequate, time delivery.
(5)Rich experience in drill bit.
(6)High quality, competitive price
2.detailed description of the tricone bits
Model | TCI BIT, STEEL TOOTH BIT | ||
IADC CODE | 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 | ||
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 | |||
available sizes: | From 4 5/8 to 17 1/2” larger sizes for hole opener bit ,reamer bit | ||
advantage | most favorable price and best quality | ||
Formation or layer | soft ,medium soft ,hard, medium hard, very hard formation | ||
Button size (extra features) | Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection | ||
Material | Alloy steel ,carbide | ||
Packing | Wooden case or steel case | ||
Payment terms | T/T,L/C | ||
Delivery terms | By sea or by air | ||
Delivery time | Within 3 to 7 days | ||
Application | Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work | ||
Product | Size | IADC CODE | |
TCI Tricone Bit | 3 7/8 ,5 1/2, 6 1/2 7 7/8,8 1/2,8 3/4 10 5/8,12 1/4 13 3/4, 17 1/2, 22, 24,26 | 417 427 437 517 527 537 617 637 737 | |
Steel Tooth Tricone Bit | 3 7/8 ,5 1/2, 6 1/2 7 7/8,8 1/2,8 3/4 10 5/8,12 1/4 13 3/4, 17 1/2, 22, 24,26 | 115 116 117 215 216 217 315 316 317 325 327 | |
PDC BIT (3 blades,4 blades, 5 blades,6 blades) | 5 1/2, 6 1/2 7 7/8,8 1/2,8 3/4 10 5/8,12 1/4 13 3/4, 17 1/2, 22, 24,26 | M223,M322,M316, M222,M416,M122 | |
Product Description
1. Cutting Structure
In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved. Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn. Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.
2. Gauge Structure
With active cutting gauge protection inserts on bit body, the bit has good gauge protection and up drill capability.
3. Bearing Structure
High precision journal bearing. Balls lock the cone. Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy. Abrasion resistance and seizure resistance of the bearing are improved. Compared with three cone bit, the leg bearing is bigger, so it can receive higher WOB and high reliability.
4. Hydraulic Design
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion.
