Product Details:
Payment & Shipping Terms:
|
| IADC: | 517 | Bearing Type: | Metal Sealed Bearings |
|---|---|---|---|
| Thread Connection: | 3 1/2REG | WOB(KN/mm): | 0.35~0.95 |
| RPM(r/min): | 280~60 | Materal: | 15CrNi4Mo |
| Nozzle: | 3 Pcs | Packing: | Wooden Case For Export |
| High Light: | drill bit,tricone drill bit |
||
China High Quality 5 7/8" IADC 517 Well used Tricone rock drill bits for sell that customer trust
Company profile
Our company is specializes in drill bits,drill pipe,Mud pump and stabilizers for water well,oil field,construction,geothermal,directional boring and underground foundation work all over the world.Our purpose is to sellthe best quality products at the lowest possible price.We are a professional supplier of new and used (rebuilt)drill bits used for oil field,water well.Including tricone bits.PDC bits and drill pipe.Various of model and dimension available.Good condition and reasonable price.
Product introduction
Tricone rock drill bit for sell
The 437 tci bits are used to drill low compressive strength,very soft formations .TCI bits maximize the use of bothconical and chisel tungsten carbide inserts of large diameters and high projection.This cutting structure design,combined with maximum cone offset,results in high bit penetration rates .The deep intermesh of cutter rows prevents bit bailing in sticky formations.
|
Size |
5 7/8 "(149 mm) |
|
IADC |
517 |
|
Bearing Type |
Metal sealed bearings |
|
Thread Connection |
3 1/2 reg pin |
|
WOB(KN/mm) |
0.35~0.95 |
|
RPM(r/min) |
280~60 |
|
Applicable Formations |
Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc. |
Other sizes
|
Size |
Bit Type |
|
|
inch |
mm |
|
|
6 |
152.4 |
517, 537,617, 637 |
|
6 1/2 |
165.1 |
517, 537 |
|
7 7/8 |
200.0 |
517,527,547,617,627,637 |
|
8 1/2 |
215.9 |
437,447,517,537,617,627,637 |
|
9 1/2 |
241.3 |
437,517,537,547,617 |
|
9 5/8 |
244.5 |
437,517, 537,547,617 |
|
9 7/8 |
250.8 |
437,517, 537,547,617 |
|
12 1/4 |
311.1 |
437,517, 537,547,617,627,637 |
|
17 1/2 |
444.5 |
517,537,617,627,637 |
|
24 |
609 |
417,517, 537,547,617,637 |
|
26 |
660 |
417,517, 537,547,617,637 |
Avaliable models
|
Model |
Button/Insert tooth bit Milled/Steel tooth bit |
|
IADC CODE |
116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
|
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 |
|
|
available sizes: |
From 2 7/8 to 26” larger sizes for hole opener bit ,reamer bit |
|
advantage |
most favourable price and best qualtity |
|
bearing type: |
sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type |

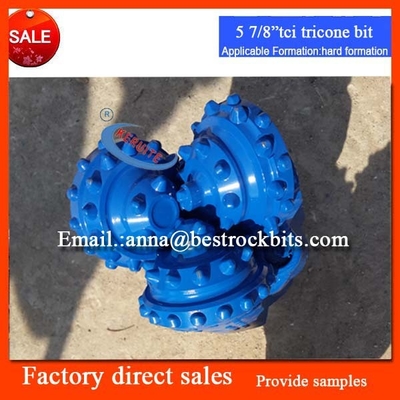

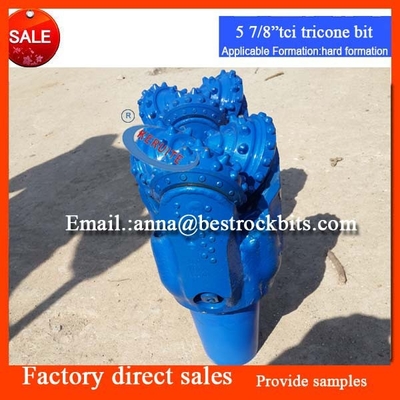

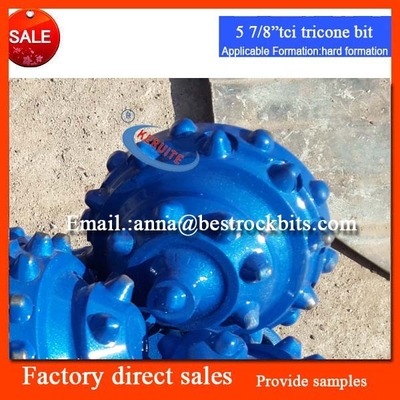

Picture show
