Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling

I'm Online Chat Now

Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling

China Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling supplier
Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling supplier Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling supplier Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling supplier Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling supplier

Large Image :  Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling

Product Details:

Place of Origin: Hebei ,China
Brand Name: Kingdream
Certification: API&ISO
Model Number: All models

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 100~1500$
Packaging Details: wooden box or as your requirement
Delivery Time: 3---5 days after you payment
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces one month
Minimum Order Quantity: 1 piece
Contact Now
Detailed Product Description
Model Number: 46mm,56mm,65mm,76mm,90mm,98m Type: Drill Bit
Machine Type: Drilling Tool Material: PDC Cutter,steel Body
Processing Type: Forging Use: Well Drilling
Application: Rock Drilling,coal Mining,water Well Drlling Suitable Rock: Medium Hard To Hard Rock Formation
Rock Formation: Mudstone,sandstone,limestone, Thread Connection: API Thread,AW,BW,NW,etc

Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling

PDC Non Core bit



The First Brand of China Water well drilling PDC bit



  1. Mainly applied to water well, geothermal well ,dam construction, coal mine gas, coal bed gas drilling
  2. Suitable for soft to medium hard rock formation
  3. 2 series PDC cutter, flat surface and Cambered surface; Flat surface has high drilling efficiency, Cambered surface is more suitable for harder rock formation



Best selling in pdc bits Steel body PDC bit for water well drilling / PDC bit for sandstone drilling

etailed Product Description

The bit is durable

1)Soft to medium formation drilling

Medium short parabolic profile with medium cutter density helps to obtain better ROP in soft to medium hard formation with lower compressive strength and small hard layers

2)Dura-set gauge

Gauge cutter promotes gauge wear resistance to provide long bit life

3)Hydraulics

Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with theproportionalfluid flow.

4)Unique back-rack design

The cutters back-rack has been unique design, reducing the bit torque and increasing aggressiveness.

Product specification:

Number of Blades

5

Number of Nozzles

10

Total Number of Cutters

78

Primary Cutter Size

19mm

Standard Gauge Length

4(102mm)

API Pin Connection

7-5/8API Reg.

Recommended operating parameters:

Hydraulic Flow Rate

950-1450GPM

RotationSpeed

60-300RPM

Weight on Bit

4-30Klbs/18-134KN

Maximum Weight on Bit

30Klbs/134KN

Model Number12-1/4"G1905

Machine TypeDrilling Equipment

CertificationISO9001:2008

Processing TypeCasting

Product specification

Number of Blades

5

Number of Nozzles

7SP

Total Number of Cutters

52

Primary Cutter Size

19mm

Standard Gauge Length

3(76mm)

API Pin Connection

6-5/8API Reg.

Recommended operating parameters:

Hydraulic Flow Rate

550-850GPM

RotationSpeed

60-300RPM

Weight on Bit

4-22Klbs/19-98KN

Maximum Weight on Bit

34Klbs/150KN

Model Number8-1/2"G1905

Product specification

Number of Blades

5

Number of Nozzles

5

Total Number of Cutters

31

Primary Cutter Size

19mm

Standard Gauge Length

2(51mm)

API Pin Connection

4-1/2API Reg.

Recommended operating parameters:

Hydraulic Flow Rate

350-500GPM

RotationSpeed

60-350RPM

Weight on Bit

3-15Klbs/14-67KN

Maximum Weight on Bit

15Klbs/67KN

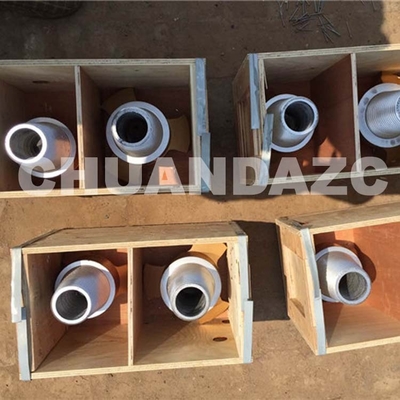

packing and shipping terms:



Do you have any questions ? Please don't



hesitate to ask me and you will get the satisfactory response once you contact us .
