|Model Number:||152mm||Type:||Drill Bit|
|Machine Type:||Drilling Tool||Material:||PDC Cutter,steel Body|
|Processing Type:||Forging||Use:||Well Drilling|
|Application:||Rock Drilling,coal Mining,water Well Drlling||Suitable Rock:||Medium Hard To Hard Rock Formation|
|Rock Formation:||Mudstone,sandstone,limestone,||Thread Connection:||API Thread,AW,BW,NW,etc|

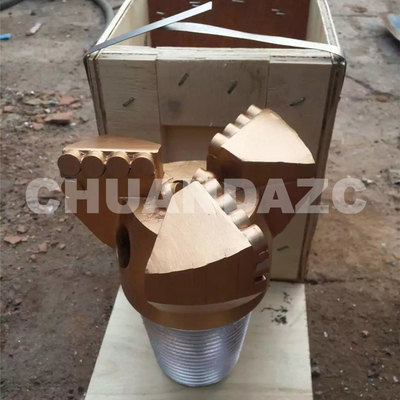

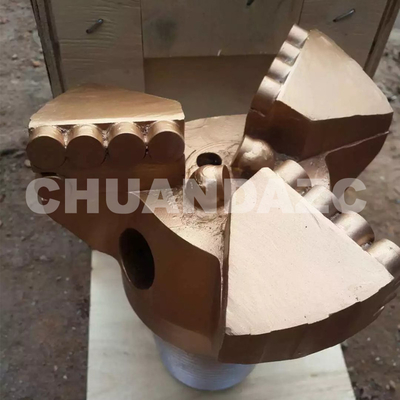

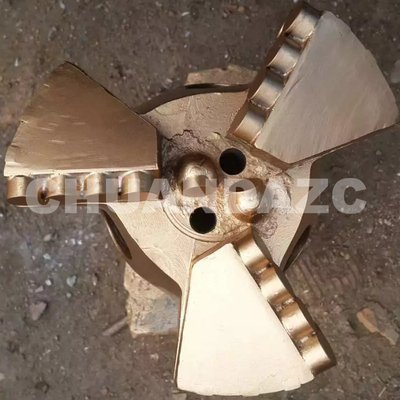

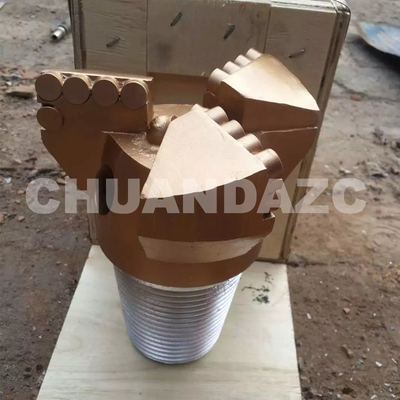

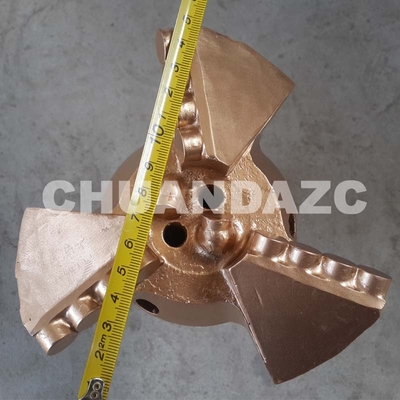

PDC Non Core bit
The First Brand of China Water well drilling PDC bit
The bit is durable
1)Soft to medium formation drilling
Medium short parabolic profile with medium cutter density helps to obtain better ROP in soft to medium hard formation with lower compressive strength and small hard layers
Gauge cutter promotes gauge wear resistance to provide long bit life
Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with theproportionalfluid flow.
4)Unique back-rack design
The cutter’s back-rack has been unique design, reducing the bit torque and increasing aggressiveness.
1.PDC drill bit is super hard material combined with diamond and hard alloy under high temperature. It has the advantages of hard and durable from diamond, and has the advantages of high impact resistance and big blade from hard alloy. It greatly improves the drilling efficiency and is the ideal drill bit for the drill operation of medium & hard as well as super hard rock.
2. The carrier of PDC bits is forged and pressed by first-class steel. Its mechanical capacity is strengthened by fully automatic vacuum heat treatment equipment.
3.The ordinary type adopts Chinese PDC as its blade, while the super-strong type adopts American blade made by GE. Choosing proper type makes high ratio of performance and price.
4.Our PDC drill bits are widely used in all industries, such as coal mining, oil exploration, geological exploration, water and hydroelectric, railway and road, tunneling construction and so on.
5.Two-wing PDC anchor bits (semi-round standard type) is applied to the hardness not bigger than f8. The working life is 10-30 times of the ordinary alloy bits, and the efficiency could be improved by 60%. Besides, the PDC bits don't requires figuring, which lows the labour intensity and helps to saves cost.
6.GE, American company, produces the main material of the blade for two-wing PDC anchor bits (semi-round strengthened type). The diamond content is 1.5 times of the ordinary bits, which has excellent abrasive resistance and applied to medium and hard rock (f≤12). Super strengthened PDC bits adopts newly designed ball type diamond as its blade. Features: fast drilling speed, high impact resistance.
7.When the drill bits work, the edge is used to cut ordinary and symmetrical formation, while the ledge acts as cushioning to avoid huge drilling footage, which helps to low the possibility of damage. Thanks to that, the drilling level of complicated formation is improved.
|pdc cutter for oil well drilling bits Specification|
|Non-coring Drill Bit||42||Coring Drill Bit||75|
|Non-coring Drill Bit||46||Coring Drill Bit||78|
|Non-coring Drill Bit||46||Coring Drill Bit||94|
|Non-coring Drill Bit||56||Coring Drill Bit||94|
|Non-coring Drill Bit||60||Coring Drill Bit||98|
|Non-coring Drill Bit||65||Coring Drill Bit||100|
|Non-coring Drill Bit||75||Coring Drill Bit||113|
|Non-coring Drill Bit||94||Coring Drill Bit||133|
|Non-coring Drill Bit||94||Coring Drill Bit||153|
|Non-coring Drill Bit||98||Multiple-cones Drill Bit||94|
|Non-coring Drill Bit||100||Multiple-cones Drill Bit||98|
|Non-coring Drill Bit||113||Multiple-cones Drill Bit||113|
|Non-coring Drill Bit||133||Multiple-cones Drill Bit||133|
|Non-coring Drill Bit||153||Scraper Drill Bit||113|
|Coring Drill Bit||65||Scraper Drill Bit||133|
Do you have any questions ? Please don't

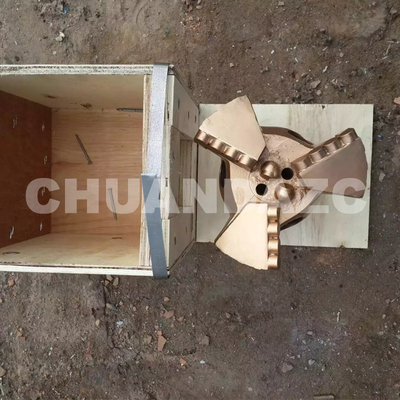

packing and shipping terms:
