| Highlight: | tricone rock bit,drill bit |
||
|---|---|---|---|
China hotsale TCI tricone rock bit for water well drilling with API certification
Brief introduction of the product
The tcicone bits can be used in various of different fields.mining.hydrology.subterranean heatp illing.water well drilling and oil well drilling .This type of bits have optimal bearing design ,it can be working stably in high WOB,and the quality tungsten carbide inserts on cone and the guage make a good wear resistance largely extend the working life of bits. It is suitable for medium to hard formation

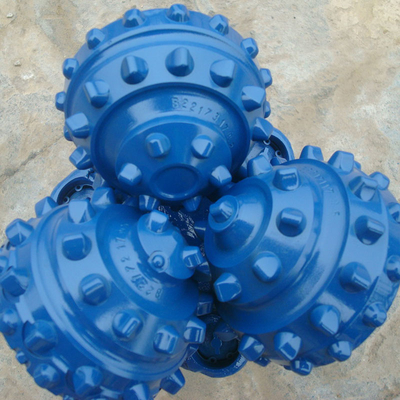

TCI Tricone bits
(1) This series tricone bit use Journal bearing. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.
(2). O ring seal is made of the more wear resistance high saturated buna-N with the increased seal section and precisely designed sealing flange in the cone sealing area increased the reliability of the seal.
(3). The bit bearing can be ball locked
(4). For steel tooth bit, the tooth surface is hardfaced with new type of wear resistan
Material and thus extended working life of the cutting structure while still maintaining high ROP.
Advantage
1.High-strength, high flexibility, high temperature, high wear resistance.
2. High-precision metal seal.
3. Locking roller ball, to adapt to high-speed.
4. The use of high strength high toughness carbide teeth,
5. Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock.
6. Cone bit to adapt to the soft, medium and hard of various strata.
